UL3530 High Temperature Silicone Insulated Wire with Tinned Copper Conductor for 200C Applications

Model Number : UL3530

Brand Name : MYSUN

Place of Origin : Guangdong, China

Certification : UL RoHS CE CCC cUL

MOQ : 100

Conductor Material : Tinned Copper wire

Diameter : 1 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26AWG, 28AWG

Insulation Material : Silicone

Rated voltage : 600V

Conductor Type : Stranded

Shape : Round

Temperature : 200C

Type : Insulated

Conductor : Tinned Copper Core

Insulation : Silicone Insulation Cable

Material : Copper

Jacket : Silicone

Color : Optional

Max Resistance : 143Ω/KM (26AWG), 89.3Ω/KM (24AWG), 56.4Ω/KM (22AWG), 35.2Ω/KM (20AWG), 22.2Ω/KM (18AWG), 14Ω/KM (16AWG), 8.78Ω/KM (14AWG), 5.53Ω/KM (12AWG), 3.476Ω/KM (10AWG), 2.16Ω/KM (8AWG), 1.362Ω/KM (6AWG), 0.8559Ω/KM (4AWG), 0.5384Ω/KM (2AWG), 0.4268Ω/KM (1AWG)

Unit Length : 305M/1000Ft (26AWG), 100M/328Ft (8AWG), 50M/164Ft (1AWG)

Contact Now

High Temperature Electric Wires UL3530
Available in various AWG sizes: 1, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28 AWG silicone cables
Product Overview
Professional manufacturer seeking country agents for mutually beneficial partnerships in high-temperature wire distribution.
UL3530 High Temperature Silicone Insulated Wire with Tinned Copper Conductor for 200C Applications
UL3530 Specifications
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Insulation Diameter (mm) Max. Conductor Resistance (Ω/KM) Unit Length (M)/(Ft)
26 7/0.16 0.48 0.78 2.04 143 305/1000
24 7/0.20 0.6 0.78 2.17 89.3
22 7/0.254 0.76 0.78 2.33 56.4
20 7/0.31 0.94 0.78 2.5 35.2
18 7/0.39 1.17 0.78 2.75 22.2
16 7/0.49 1.47 0.78 2.05 14
14 41/0.254 1.89 0.78 3.43 8.78
12 19/0.47 2.36 0.78 3.92 5.53
10 19/0.61 3.05 1.15 5.36 3.476
8 19/0.75 3.75 1.55 6.85 2.16 100/328
6 266/0.254 5.52 1.55 8.62 1.362
4 420/0.254 6.63 1.55 9.73 0.8559
2 655/0.254 8.75 1.55 11.85 0.5384
1 338/0.4 10 2.03 14.06 0.4268 50/164

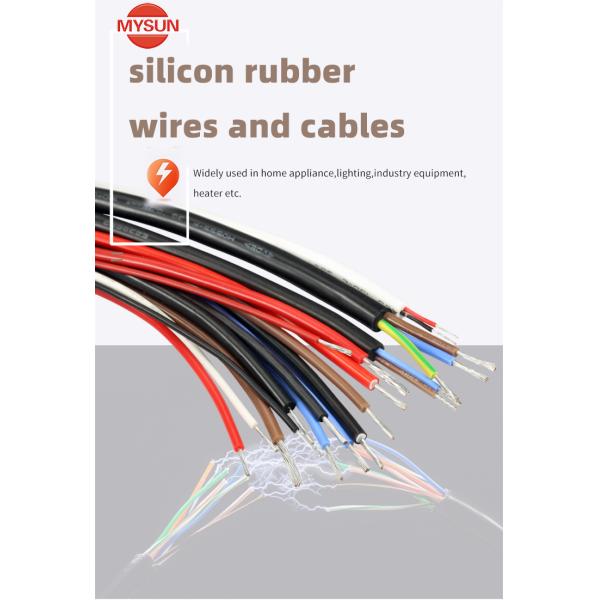

Our Product Range
UL3530 High Temperature Silicone Insulated Wire with Tinned Copper Conductor for 200C Applications
Applications
UL3530 High Temperature Silicone Insulated Wire with Tinned Copper Conductor for 200C Applications
Company Profile
UL3530 High Temperature Silicone Insulated Wire with Tinned Copper Conductor for 200C Applications UL3530 High Temperature Silicone Insulated Wire with Tinned Copper Conductor for 200C Applications
Global Client Network
UL3530 High Temperature Silicone Insulated Wire with Tinned Copper Conductor for 200C Applications
Industry Exhibitions
UL3530 High Temperature Silicone Insulated Wire with Tinned Copper Conductor for 200C Applications
Quality Certifications
UL3530 High Temperature Silicone Insulated Wire with Tinned Copper Conductor for 200C Applications
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 27 years of experience. Headquartered in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
  • What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certifications.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment types: T/T, L/C, PayPal, Western Union, Cash.
